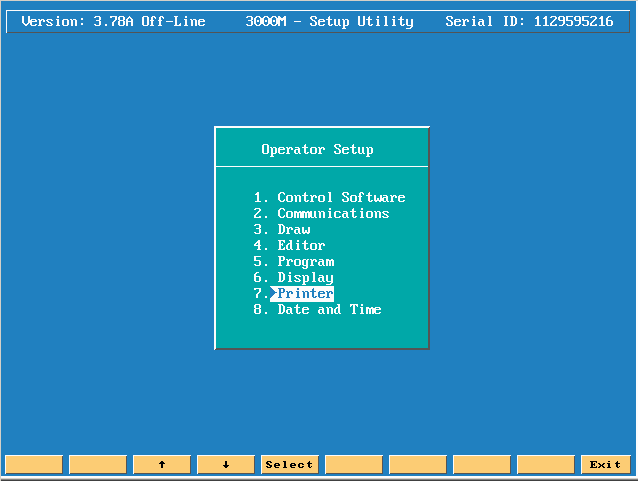

Printer Parameter

Function

Settings

Default output devices

Specifies where file is printed.

To send a file to the printer, type Prn.

To print to another file, type the: drive, path, and filename with extension. If the filename typed is not a current file, the CNC creates the file and transfers the data to the file. If filename typed is an existing file, the CNC replaces the data with the print file data.

Prn [Default]

NOTE: The user directory is C:\USER.

Lines per page

Number of lines to be printed per page (8.5” x 11”).

Type value. [Default: 55]

Page heading

Prints a page heading including filename, date and time and page number.

Yes Print heading. [Default]

No Do not print heading.

Line numbers

Prints line numbers on hard copy of file.

Yes Select to print line numbers.

No Select if no line numbers are desired. [Default]

Print quality

Sets print quality. Generally, the lower the printer quality, the faster the file prints

NLQ Near Letter Quality; highest quality, lowest speed

Utility Middle quality, middle speed

High Speed Low quality, high speed

Ignore Uses printer defaults [Default]

Characters per inch

Sets the number of characters to be printed per inch. Select Ignore to print at the default value.

10 (characters per Inch (CPI)) [Default]

12

17

20

Ignore (Uses printer defaults)

Wrap text

Wraps text to the next line if program is longer than 80 characters.

Yes Select to wrap text. [Default]

No Select to print beyond 80 characters.
